Model SL
Slabs - Floors - Beam bottom
Exclusive Jeruel spacer, super-reinforced, used in areas with heavy traffic, in the concreting of slabs, beam bottoms, industrial floors and precast floors in general.
It has an exclusive fitting system that allows the steel to be locked.
![Model SL. Slabs - Floors - Beam bottom.](https://en.jeruelplast.com.br/_uploads/SKi8vtr75TiuZIJS9scc7.jpg)
Images merely illustrative. There may be variations in shade and color.
Product usage
![Usage. Use. Practical usage. Model SL](https://en.jeruelplast.com.br/_uploads/aJnexhy8CoaF0az81EvP6.jpg)
![Usage. Use. Practical usage. Model SL](https://en.jeruelplast.com.br/_uploads/8IYpNzniIjzWGegCg2Kth.jpg)
![Usage. Use. Practical usage. Model SL](https://en.jeruelplast.com.br/_uploads/4hosFqgpWEshjsJlvyNqf.jpg)
![Usage. Use. Practical usage. Model SL](https://en.jeruelplast.com.br/_uploads/S07ND9BNBEMAkZXR8xoeg.jpg)

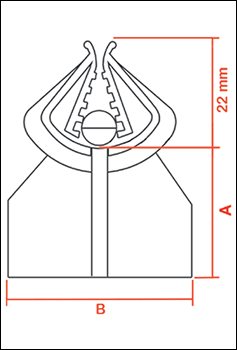

![Technical drawing. CAD. Model SL.](https://en.jeruelplast.com.br/_uploads/3toX5fkdbBMf0H7hAOhvr.gif)
Technical information | |||
---|---|---|---|
Código | Aço | A (cobrimento) | B |
SL 10 | 4,2 à 16,0 | 10,0 | 36,0 |
SL 15 | 4,2 à 16,0 | 15,0 | 37,0 |
SL 20 | 4,2 à 16,0 | 20,0 | 38,0 |
SL 25 | 4,2 à 16,0 | 25,0 | 39,0 |
SL 30 | 4,2 à 16,0 | 30,0 | 40,0 |
SL 35 | 4,2 à 16,0 | 35,0 | 42,0 |
SL 40 | 4,2 à 16,0 | 40,0 | 43,0 |
SL 45 | 4,2 à 16,0 | 45,0 | 44,0 |
SL 50 | 4,2 à 16,0 | 50,0 | 46,0 |
