Model Cone
Forms
Sealing back cone for tie-rod protective sheaths. Used in the stabilization of parallel forms. Fits on the ends of conduits.
![Model Cone. Forms.](https://en.jeruelplast.com.br/_uploads/cFTjv-hy5Dcj3eKBQEWwP.jpg)
Images merely illustrative. There may be variations in shade and color.
Product usage
![Usage. Use. Practical usage. Model Cone](https://en.jeruelplast.com.br/_uploads/KxBGV0XQkGZRqx5oqSlSV.png)
![Usage. Use. Practical usage. Model Cone](https://en.jeruelplast.com.br/_uploads/nZ8QIRdNqY58iN5fw8c-F.jpg)
![Usage. Use. Practical usage. Model Cone](https://en.jeruelplast.com.br/_uploads/l0A3AbIvY1LnKJZ0kb4fX.jpg)
![Usage. Use. Practical usage. Model Cone](https://en.jeruelplast.com.br/_uploads/AEiBSdv5SAVlmCNef7wbZ.jpg)

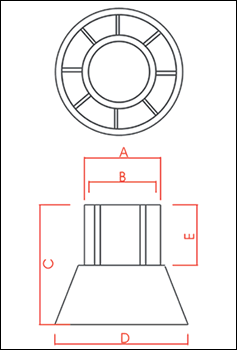

![Technical drawing. CAD. Model Cone.](https://en.jeruelplast.com.br/_uploads/oGTMP81ggd_5VfK7gKUHn.gif)
Technical information | ||||||
---|---|---|---|---|---|---|
Código | Tubo | A | B | C | D | E |
CONE 18 | P/ tubo 1/2" | 17,0 | 14,0 | 24,0 | 34,0 | 13,0 |
CONE 34 | P/ tubo 3/4" | 21,0 | 19,0 | 32,0 | 35,0 | 17,0 |
CONE 1" | P/ tubo 1" | 26,0 | 22,0 | 36,0 | 46,0 | 19,0 |
