Model ET
Tubes and Staves
Used in the manufacture of tubes, walls and precast in general.
It has a locking system in the iron through a counter-piece (base), which, once locked, does not detach from the iron armature.
The set is fixed precisely at the crossing of the meshes, ensuring secure locking.
![Model ET. Tubes and Staves.](https://en.jeruelplast.com.br/_uploads/kPbM1OU0NbnYpcqhQ6YUb.jpg)
Images merely illustrative. There may be variations in shade and color.
Product usage
![Usage. Use. Practical usage. Model ET](https://en.jeruelplast.com.br/_uploads/aRzsDJ7HiV0NNlVYT9n-d.jpg)
![Usage. Use. Practical usage. Model ET](https://en.jeruelplast.com.br/_uploads/Ku4G_69goibZhK5aYhkSB.jpg)
![Usage. Use. Practical usage. Model ET](https://en.jeruelplast.com.br/_uploads/nDZKJ3zbEYyCQXpoeHTIp.jpg)
![Usage. Use. Practical usage. Model ET](https://en.jeruelplast.com.br/_uploads/w1O8GiI6tkkTRhO2t6F2u.jpg)

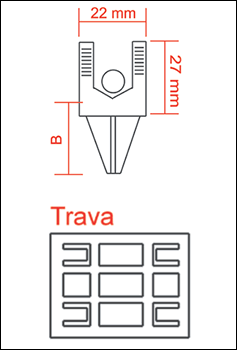

![Technical drawing. CAD. Model ET.](https://en.jeruelplast.com.br/_uploads/DfyoH8spAWKhSVfB_u4MW.gif)
Technical information | ||
---|---|---|
Código | Aço | B (cobrimento) |
ET 10 | Até 8,0 | 10,0 |
ET 15 | Até 8,0 | 15,0 |
ET 20 | Até 8,0 | 20,0 |
ET 25 | Até 8,0 | 25,0 |
ET 40 | Até 8,0 | 40,0 |
ET 50 | Até 8,0 | 50,0 |
ET 60 | Até 8,0 | 60,0 |
