Model EPD
Tubes and Staves
Thimble-type spacer, used to guarantee coverage at the tip of the hardware, applied to vertical and horizontal reinforcements.
Indicated in the manufacture of tubes for poles, piles and concrete and prefabricated tubes in general.
![Model EPD. Tubes and Staves.](https://en.jeruelplast.com.br/_uploads/ufmTkWiQiomuij2DOVl7A.jpg)
Images merely illustrative. There may be variations in shade and color.
Product usage
![Usage. Use. Practical usage. Model EPD](https://en.jeruelplast.com.br/_uploads/E0To3T1vzuRMDvKASO3X0.jpg)
![Usage. Use. Practical usage. Model EPD](https://en.jeruelplast.com.br/_uploads/A68Om3_rcM7wx-EhjSH7z.jpg)
![Usage. Use. Practical usage. Model EPD](https://en.jeruelplast.com.br/_uploads/u53HKXG9GfGmpAJegr4rU.jpg)
![Usage. Use. Practical usage. Model EPD](https://en.jeruelplast.com.br/_uploads/p53g04lCk1DJNGORFXjws.jpg)

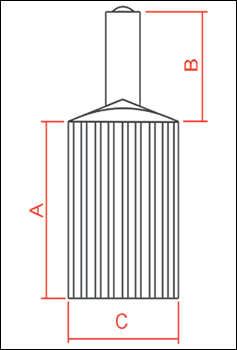

![Technical drawing. CAD. Model EPD.](https://en.jeruelplast.com.br/_uploads/5LfsQU7WgdM0kINzbXlL5.gif)
Technical information | ||||
---|---|---|---|---|
Código | Aço | B (cobrimento) | A | B |
EPD 5-8 | 5,0 | 15,0 | 24,0 | 16,0 |
EPD 10 | 8,0 à 10,0 | 15,0 | 20,0 | 22,0 |
EPD 12 | 12,5 | 25,0 | 27,0 | 23,0 |
