Model R
Poles
Closed circular spacer used on precast concrete posts and piles.
Its construction allows the use of heavy hardware, ensuring correct coverage.
Note: It has friezes on the circumference that allow less contact with the shape and better flow for filling the concrete.
![Model R. Poles.](https://en.jeruelplast.com.br/_uploads/lEKBSTonRTIKbru5GvM57.jpg)
Images merely illustrative. There may be variations in shade and color.
Product usage
![Usage. Use. Practical usage. Model R](https://en.jeruelplast.com.br/_uploads/0NEtjk_XPhUkfixSYXhwE.jpg)
![Usage. Use. Practical usage. Model R](https://en.jeruelplast.com.br/_uploads/EcdRFkx-ivavH6DaODAeB.jpg)
![Usage. Use. Practical usage. Model R](https://en.jeruelplast.com.br/_uploads/bRr_-ZtwkYR4t_zHC7Ftr.jpg)
![Usage. Use. Practical usage. Model R](https://en.jeruelplast.com.br/_uploads/sD-yOma5VNHs7Y-woqdCI.jpg)

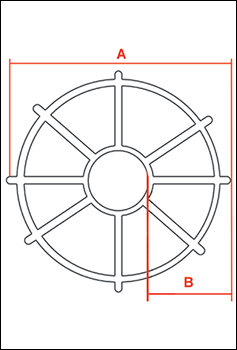

![Technical drawing. CAD. Model R.](https://en.jeruelplast.com.br/_uploads/jDTrPapSvO0th3Ii_q3ly.gif)
Technical information | |||
---|---|---|---|
Código | Aço | B (cobrimento) | A |
R 29 | Até 10,0 | 10,0 | 29,0 |
R 41 | Até 8,0 | 15,0 | 41,0 |
R 44 | Até 10,0 | 15,0 | 44,0 |
R 48 | Até 16,0 | 15,0 | 48,0 |
R 49 | Até 10,0 | 20,0 | 49,0 |
R 50 | Até 12,5 | 15,0 | 50,0 |
R 60 | Até 16,0 | 20,0 | 60,0 |
R 67 | Até 12,5 | 25,0 | 67,0 |
R 72 | Até 16,0 | 25,0 | 72,0 |
R 76 | Até 20,0 | 25,0 | 76,0 |
