Model SU
Columns - Walls - Sides
Universal circular spacer. With a profile built in such a way as to reduce its contact with the formwork and the iron fitting, making it difficult to leave the steel.
Its exclusive fitting has a spring and counter-spring system allowing a perfect accommodation of the iron.
Indicated for vertical hardware in the construction of walls, columns, lateral beams, posts, tubes and precast concrete.
Jeruel exclusive model developed for thicker steel gauges, which can also be applied to main hardware.
Images merely illustrative. There may be variations in shade and color.
Product usage

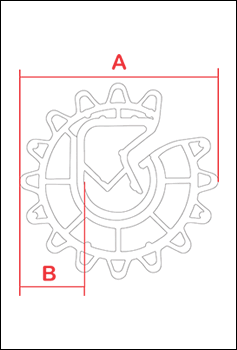

| Technical information | |||
|---|---|---|---|
| Código | Aço | B (cobrimento) | A |
| SU 25 | 12,5 à 25,4 | 25,0 | 78,0 |
| SU 30 | 12,5 à 25,4 | 30,0 | 88,0 |
| SU 40 | 12,5 à 25,4 | 40,0 | 108,0 |
| SU 50 | 12,5 à 25,4 | 50,0 | 128,0 |
| SU 60 | 12,5 à 25,4 | 60,0 | 148,0 |
