Model EPR
Columns - Walls - Sides
Circular spacer with radial entry, used equally with the "S" model.
This was the first of the models developed by Jeruel, which is still used today in the manufacture of pre-molded boards and panels.
Images merely illustrative. There may be variations in shade and color.
Product usage

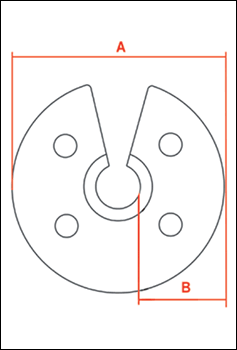

| Technical information | |||
|---|---|---|---|
| Código | Aço | B (cobrimento) | A |
| EPR 12 | 2,5 | 5,0 | 12,0 |
| EPR 15 | 2,5 | 6,5 | 15,0 |
| EPR 18-2 | 2,5 / 3,4 | 8,0 | 19,0 |
| EPR 20-6 | 6,3 | 7,0 | 20,0 |
| EPR 22-2 | 2,5 / 3,4 | 10,0 | 22,0 |
| EPR 22-5 | 5,0 | 8,5 | 22,0 |
| EPR 24-4 | 4,2 | 10,0 | 24,0 |
| EPR 30-6 | 6,3 | 12,0 | 30,0 |
